#defineWDT_BASE (APB1PERIPH_BASE + 0x04000)///< WDT register base address#defineAPB1PERIPH_BASE ((uint32_t)0x40000000)///< APB1 base address#defineCLK_APBCLK_WDT_EN_Pos (0) /*!< CLK_T::APBCLK: WDT_EN Position */#defineCLK_APBCLK_WDT_EN_Msk (0x1ul << CLK_APBCLK_WDT_EN_Pos) /*!< CLK_T::APBCLK: WDT_EN Mask

typedefstruct{/** * PWRCTL * =================================================================================================== * Offset: 0x00 System Power Down Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |HXT_EN |HXT Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |The bit default value is set by flash controller user configuration register config0 [26]. * | | |0 = Disabled. * | | |1 = Enabled. * | | |HXT is disabled by default. * |[1] |LXT_EN |LXT Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Disabled. * | | |1 = Enabled. * | | |LXT is disabled by default. * |[2] |HIRC_EN |HIRC Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Disabled. * | | |1 = Enabled. * | | |HIRC is enabled by default. * |[3] |LIRC_EN |LIRC Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Disabled. * | | |1 = Enabled. * | | |LIRC is enabled by default. * |[4] |WK_DLY |Wake-Up Delay Counter Enable * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |When chip wakes up from Power-down mode, the clock control will delay 4096 clock cycles to wait HXT stable or 16 clock cycles to wait HIRC stable. * | | |0 = Delay clock cycle Disabled. * | | |1 = Delay clock cycle Enabled. * |[5] |PD_WK_IE |Power-Down Mode Wake-Up Interrupt Enable * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Disabled. * | | |1 = Enabled. * | | |PD_WK_INT will be set if both PD_WK_IS and PD_WK_IE are high. * |[6] |PD_EN |Chip Power-Down Mode Enable Bit * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |When CPU sets this bit, the chip power down is enabled and chip will not enter Power-down mode until CPU sleep mode is also active * | | |When chip wakes up from Power-down mode, this bit will be auto cleared. * | | |When chip is in Power-down mode, the LDO, HXT and HIRC will be disabled, but LXT and LIRC are not controlled by Power-down mode. * | | |When power down, the PLL and system clock (CPU, HCLKx and PCLKx) are also disabled no matter the Clock Source selection. * | | |Peripheral clocks are not controlled by this bit, if peripheral Clock Source is from LXT or LIRC. * | | |In Power-down mode, flash macro power is ON. * | | |0 = Chip operated in Normal mode. * | | |1 = Chip power down Enabled. * |[8] |HXT_SELXT |HXT SELXT * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = High frequency crystal loop back path Disabled. It is used for external oscillator. * | | |1 = High frequency crystal loop back path Enabled. It is used for external crystal. * |[9] |HXT_GAIN |HXT Gain Control Bit * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |Gain control is used to enlarge the gain of crystal to make sure crystal wok normally. * | | |If gain control is enabled, crystal will consume more power than gain control off. * | | |0 = Gain control Disabled. It means HXT gain is always high. * | | |For 16MHz to 24MHz crystal. * | | |1 = Gain control Enabled. HXT gain will be high lasting 2ms then low. This is for power saving. * | | |For 4MHz to 16MHz crystal. * |[10] |LXT_SCNT |LXT Stable Time Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Delay 4096 LXT before LXT output. * | | |1 = Delay 8192 LXT before LXT output. * |[12:11] |HXT_HF_ST |HXT Frequency Selection * | | |Set this bit to meet HXT frequency selection (Recommended) * | | |00 = HXT frequency is from 4 MHz to 12 MHz. * | | |01 = HXT frequency is from 12 MHz to 16 MHz. * | | |10 = HXT frequency is from 16 MHz to 24 MHz. * | | |11 = Reserved.*/__IO uint32_t PWRCTL;/** * AHBCLK * =================================================================================================== * Offset: 0x04 AHB Devices Clock Enable Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |GPIO_EN |GPIO Controller Clock Enable * | | |0 = Disabled. * | | |1 = Enabled. * |[1] |DMA_EN |DMA Controller Clock Enable * | | |0 = Disabled. * | | |1 = Enabled. * |[2] |ISP_EN |Flash ISP Controller Clock Enable * | | |0 = Disabled. * | | |1 = Enabled. * |[3] |EBI_EN |EBI Controller Clock Enable * | | |0 = Disabled. * | | |1 = Enabled. * |[4] |SRAM_EN |SRAM Controller Clock Enable * | | |0 = Disabled. * | | |1 = Enabled. * |[5] |TICK_EN |System Tick Clock Enable * | | |0 = Disabled. * | | |1 = Enabled.*/__IO uint32_t AHBCLK;/** * APBCLK * =================================================================================================== * Offset: 0x08 APB Devices Clock Enable Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |WDT_EN |Watchdog Timer Clock Enable Control * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |This bit is used to control the WDT APB clock only, The WDT engine Clock Source is from LIRC. * | | |0 = Disabled. * | | |1 = Enabled. * |[1] |RTC_EN |Real-Time-Clock Clock Enable Control * | | |This bit is used to control the RTC APB clock only, The RTC engine Clock Source is from LXT. * | | |0 = Disabled. * | | |1 = Enabled. * |[2] |TMR0_EN |Timer0 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[3] |TMR1_EN |Timer1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[4] |TMR2_EN |Timer2 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[5] |TMR3_EN |Timer3 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[6] |FDIV_EN |Frequency Divider Output Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[7] |SC2_EN |SmartCard 2 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[8] |I2C0_EN |I2C0 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[9] |I2C1_EN |I2C1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[12] |SPI0_EN |SPI0 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[13] |SPI1_EN |SPI1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[14] |SPI2_EN |SPI2 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[16] |UART0_EN |UART0 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[17] |UART1_EN |UART1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[20] |PWM0_CH01_EN|PWM0 Channel 0 And Channel 1Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[21] |PWM0_CH23_EN|PWM0 Channel 2 And Channel 3 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[22] |PWM1_CH01_EN|PWM1 Channel 0 And Channel 1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[23] |PWM1_CH23_EN|PWM1 Channel 2 And Channel 3 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[25] |DAC_EN |12-Bit DAC Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[26] |LCD_EN |LCD Controller Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[27] |USBD_EN |USB FS Device Controller Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[28] |ADC_EN |Analog-Digital-Converter (ADC) Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[29] |I2S_EN |I2S Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[30] |SC0_EN |SmartCard 0 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled. * |[31] |SC1_EN |SmartCard 1 Clock Enable Control * | | |0 = Disabled. * | | |1 = Enabled.*/__IO uint32_t APBCLK;/** * CLKSTATUS * =================================================================================================== * Offset: 0x0C Clock status monitor Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |HXT_STB |HXT Clock Source Stable Flag * | | |0 = HXT clock is not stable or not enable. * | | |1 = HXT clock is stable. * |[1] |LXT_STB |LXT Clock Source Stable Flag * | | |0 = LXT clock is not stable or not enable. * | | |1 = LXT clock is stable. * |[2] |PLL_STB |PLL Clock Source Stable Flag * | | |0 = PLL clock is not stable or not enable. * | | |1 = PLL clock is stable. * |[3] |LIRC_STB |LIRC Clock Source Stable Flag * | | |0 = LIRC clock is not stable or not enable. * | | |1 = LIRC clock is stable. * |[4] |HIRC_STB |HIRC Clock Source Stable Flag * | | |0 = HIRC clock is not stable or not enable. * | | |1 = HIRC clock is stable. * |[7] |CLK_SW_FAIL|Clock Switch Fail Flag * | | |0 = Clock switch success. * | | |1 = Clock switch fail. * | | |This bit will be set when target switch Clock Source is not stable. This bit is write 1 clear*/__I uint32_t CLKSTATUS;/** * CLKSEL0 * =================================================================================================== * Offset: 0x10 Clock Source Select Control Register 0 * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[2:0] |HCLK_S |HCLK Clock Source Selection * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |Note: * | | |Before Clock Source switches, the related clock sources (pre-select and new-select) must be turn on * | | |The 3-bit default value is reloaded with the value of CFOSC (Config0[26:24]) in user configuration register in Flash controller by any reset. * | | |Therefore the default value is either 000b or 111b. * | | |000 = HXT * | | |001 = LXT * | | |010 = PLL Clock * | | |011 = LIRC * | | |111 = HIRC * | | |Others = Reserved*/__IO uint32_t CLKSEL0;/** * CLKSEL1 * =================================================================================================== * Offset: 0x14 Clock Source Select Control Register 1 * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[1:0] |UART_S |UART 0/1 Clock Source Selection (UART0 And UART1 Use The Same Clock Source Selection) * | | |00 = HXT * | | |01 = LXT * | | |10 = PLL Clock * | | |11 = HIRC * |[3:2] |ADC_S |ADC Clock Source Selection * | | |00 = HXT * | | |01 = LXT * | | |10 = PLL Clock * | | |11 = HIRC * |[5:4] |PWM0_CH01_S|PWM0 Channel 0 And Channel 1 Clock Source Selection * | | |PWM0 channel 0 and channel 1 use the same Engine clock source, both of them with the same prescaler * | | |00 = HXT * | | |01 = LXT * | | |10 = HCLK * | | |11 = HIRC * |[7:6] |PWM0_CH23_S|PWM0 Channel 2 And Channel 3 Clock Source Selection * | | |PWM0 channel 2 and channel 3 use the same Engine clock source, both of them with the same prescaler * | | |00 = HXT * | | |01 = LXT * | | |10 = HCLK * | | |11 = HIRC * |[10:8] |TMR0_S |Timer0 Clock Source Selection * | | |000 = HXT * | | |001 = LXT * | | |010 = LIRC * | | |011 = External Pin * | | |111 = HIRC * | | |Others = Reserved * |[14:12] |TMR1_S |Timer1 Clock Source Selection * | | |000 = HXT * | | |001 = LXT * | | |010 = LIRC * | | |011 = External Pin * | | |111 = HIRC * | | |Others = Reserved * |[18] |LCD_S |LCD Clock Source Selection * | | |0 = Clock Source from LXT. * | | |1 = Reserved.*/__IO uint32_t CLKSEL1;/** * CLKSEL2 * =================================================================================================== * Offset: 0x18 Clock Source Select Control Register 2 * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[3:2] |FRQDIV_S |Clock Divider Clock Source Selection * | | |00 = HXT * | | |01 = LXT * | | |10 = HCLK * | | |11 = HIRC * |[5:4] |PWM1_CH01_S|PWM1 Channel 0 And Channel 1 Clock Source Selection * | | |PWM1 channel 0 and channel 1 use the same Engine clock source, both of them with the same pre-scale * | | |00 = HXT * | | |01 = LXT * | | |10 = HCLK * | | |11 = HIRC * |[7:6] |PWM1_CH23_S|PWM1 Channel 2 And Channel 2 Clock Source Selection * | | |PWM1 channel 2 and channel 3 use the same Engine clock source, both of them with the same pre-scale * | | |00 = HXT * | | |01 = LXT * | | |10 = HCLK * | | |11 = HIRC * |[10:8] |TMR2_S |Timer2 Clock Source Selection * | | |000 = HXT * | | |001 = LXT * | | |010 = LIRC * | | |011 = External Pin * | | |111 = HIRC * | | |Others = Reserved * |[14:12] |TMR3_S |Timer3 Clock Source Selection * | | |000 = HXT * | | |001 = LXT * | | |010 = LIRC * | | |011 = External Pin * | | |111 = HIRC * | | |Others = Reserved * |[17:16] |I2S_S |I2S Clock Source Selection * | | |00 = HXT * | | |01 = PLL Clock * | | |10 = HIRC * | | |11 = HIRC * |[19:18] |SC_S |SC Clock Source Selection * | | |00 = HXT * | | |01 = PLL Clock * | | |10 = HIRC * | | |11 = HIRC * | | |Note: SC0,SC1 and SC2 use the same Clock Source selection but they have different clock divider number. * |[20] |SPI0_S |SPI0 Clock Source Selection * | | |0 = PLL. * | | |1 = HCLK. * |[21] |SPI1_S |SPI1 Clock Source Selection * | | |0 = PLL. * | | |1 = HCLK. * |[22] |SPI2_S |SPI2 Clock Source Selection * | | |0 = PLL. * | | |1 = HCLK.*/__IO uint32_t CLKSEL2;/** * CLKDIV0 * =================================================================================================== * Offset: 0x1C Clock Divider Number Register 0 * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[3:0] |HCLK_N |HCLK Clock Divide Number From HCLK Clock Source * | | |The HCLK clock frequency = (HCLK Clock Source frequency) / (HCLK_N + 1). * |[7:4] |USB_N |USB Clock Divide Number From PLL Clock * | | |The USB clock frequency = (PLL frequency ) / (USB_N + 1). * |[11:8] |UART_N |UART Clock Divide Number From UART Clock Source * | | |The UART clock frequency = (UART Clock Source frequency ) / (UART_N + 1). * |[15:12] |I2S_N |I2S Clock Divide Number From I2S Clock Source * | | |The I2S clock frequency = (I2S Clock Source frequency ) / (I2S_N + 1). * |[23:16] |ADC_N |ADC Clock Divide Number From ADC Clock Source * | | |The ADC clock frequency = (ADC Clock Source frequency ) / (ADC_N + 1). * |[31:28] |SC0_N |SC 0 Clock Divide Number From SC 0 Clock Source * | | |The SC 0 clock frequency = (SC0 Clock Source frequency ) / (SC0_N + 1).*/__IO uint32_t CLKDIV0;/** * CLKDIV1 * =================================================================================================== * Offset: 0x20 Clock Divider Number Register 1 * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[3:0] |SC1_N |SC 1 Clock Divide Number From SC 1 Clock Source * | | |The SC 1 clock frequency = (SC 1 Clock Source frequency ) / (SC1_N + 1). * |[7:4] |SC2_N |SC 2 Clock Divide Number From SC2 Clock Source * | | |The SC 2 clock frequency = (SC 2 Clock Source frequency ) / (SC2_N + 1).*/__IO uint32_t CLKDIV1;/** * PLLCTL * =================================================================================================== * Offset: 0x24 PLL Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[4:0] |FB_DV |PLL Feedback Divider Control Pins * | | |Refer to the formulas below the table. * | | |The range of FB_DV is from 0 to 63. * |[9:8] |IN_DV |PLL Input Divider Control Pins * | | |Refer to the formulas below the table. * |[12] |OUT_DV |PLL Output Divider Control Pins * | | |Refer to the formulas below the table. This bit MUST be 0 for PLL output low deviation. * |[16] |PD |Power-Down Mode * | | |If set the PD_EN bit "1" in PWR_CTL register, the PLL will enter Power-down mode too * | | |0 = PLL is in normal mode. * | | |1 = PLL is in power-down mode (default). * |[17] |PLL_SRC |PLL Source Clock Select * | | |0 = PLL source clock from HXT. * | | |1 = PLL source clock from HIRC.*/__IO uint32_t PLLCTL;/** * FRQDIV * =================================================================================================== * Offset: 0x28 Frequency Divider Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[3:0] |FSEL |Divider Output Frequency Selection Bits * | | |The formula of output frequency is * | | |Fout = Fin/2^(N+1),. * | | |Where Fin is the input clock frequency, Fout is the frequency of divider output clock and N is the 4-bit value of FSEL[3:0]. * |[4] |FDIV_EN |Frequency Divider Enable Bit * | | |0 = Frequency Divider Disabled. * | | |1 = Frequency Divider Enabled.*/__IO uint32_t FRQDIV;/** * MCLKO * =================================================================================================== * Offset: 0x2C Module Clock Output Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[5:0] |MCLK_SEL |Module Clock Output Source Selection (PC.0) * | | |000000 = ISP_CLK * | | |000001 = HIRC * | | |000010 = HXT * | | |000011 = LXT * | | |000100 = LIRC * | | |000101 = PLL output * | | |000110 = PLL input * | | |000111 = System Tick * | | |001000 = HCLK clock * | | |001010 = PCLK clock * | | |100000 = TMR0_CLK * | | |100001 = TMR1_CLK * | | |100010 = UART0_CLK * | | |100011 = USB_CLK * | | |100100 = ADC_CLK * | | |100101 = WDT_CLK * | | |100110 = PWM0_CH01_CLK * | | |100111 = PWM0_CH32_CLK * | | |101001 = LCD_CLK * | | |111000 = TMR2_CLK * | | |111001 = TMR3_CLK * | | |111010 = UART1_CLK * | | |111011 = PWM1_CH01_CLK * | | |111100 = PWM1_CH23_CLK * | | |111101 = I²S_CLK * | | |111110 = SC0_CLK * | | |111111 = SC1_CLK * |[7] |MCLK_EN |Module Clock Output Enable * | | |User can get the module clock output from PC.0 pin via choosing the clock source in the MCLK_SEL bit field and then setting MCLK_EN bit to 1. * | | |0 = Module clock output Disabled. * | | |1 = Module clock output Enabled. * | | |Note: If this bit is enabled, PC.0 will be configured to module clock output and the setting of PC0_MFP will be ineffective*/__IO uint32_t MCLKO;/** * WK_INTSTS * =================================================================================================== * Offset: 0x30 Wake-up interrupt status * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |PD_WK_IS |Wake-Up Interrupt Status In Chip Power-Down Mode * | | |This bit indicates that some event resumes chip from Power-down mode * | | |The status is set if external interrupts, UART, GPIO, RTC, USB, SPI, Timer, WDT, and BOD wake-up occurred. * | | |Write 1 to clear this bit.*/__IO uint32_t WK_INTSTS; } CLK_T;

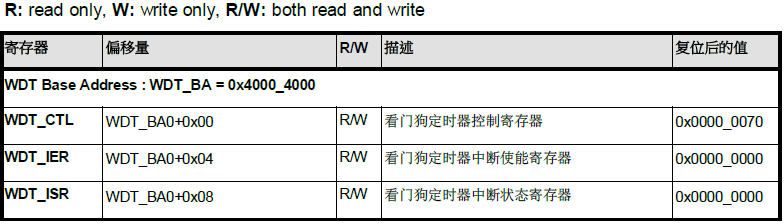

#define APB1PERIPH_BASE ((uint32_t)0x40000000) ///< APB1 base address #define WDT_BASE (APB1PERIPH_BASE + 0x04000) ///< WDT register base address #define WDT ((WDT_T *) WDT_BASE) ///< Pointer to WDT register structure

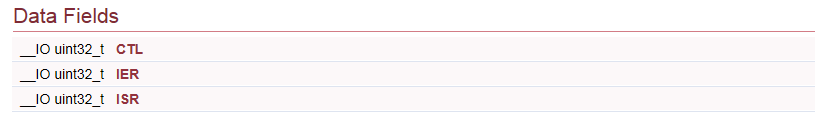

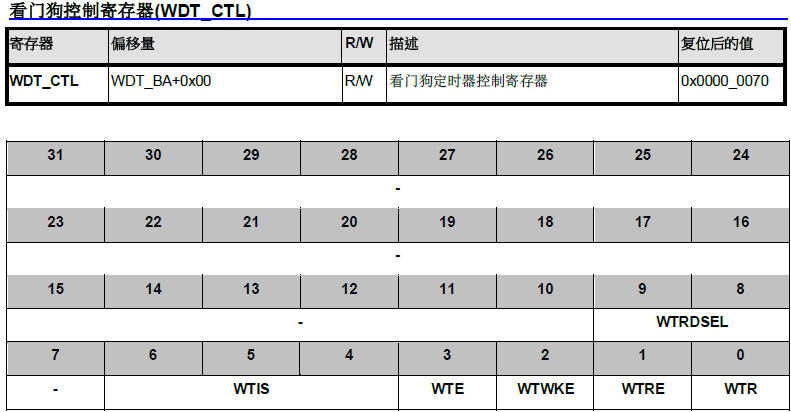

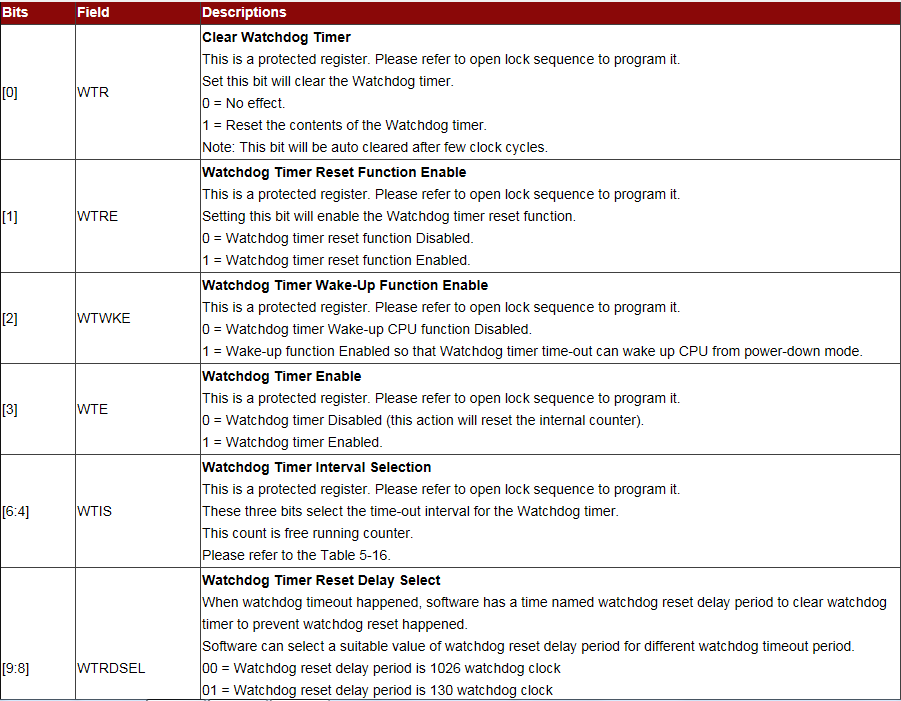

typedef struct { /** * CTL * =================================================================================================== * Offset: 0x00 Watchdog Timer Control Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |WTR |Clear Watchdog Timer * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |Set this bit will clear the Watchdog timer. * | | |0 = No effect. * | | |1 = Reset the contents of the Watchdog timer. * | | |Note: This bit will be auto cleared after few clock cycles. * |[1] |WTRE |Watchdog Timer Reset Function Enable * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |Setting this bit will enable the Watchdog timer reset function. * | | |0 = Watchdog timer reset function Disabled. * | | |1 = Watchdog timer reset function Enabled. * |[2] |WTWKE |Watchdog Timer Wake-Up Function Enable * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Watchdog timer Wake-up CPU function Disabled. * | | |1 = Wake-up function Enabled so that Watchdog timer time-out can wake up CPU from power-down mode. * |[3] |WTE |Watchdog Timer Enable * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |0 = Watchdog timer Disabled (this action will reset the internal counter). * | | |1 = Watchdog timer Enabled. * |[6:4] |WTIS |Watchdog Timer Interval Selection * | | |This is a protected register. Please refer to open lock sequence to program it. * | | |These three bits select the time-out interval for the Watchdog timer. * | | |This count is free running counter. * | | |Please refer to the Table 5-16. * |[9:8] |WTRDSEL |Watchdog Timer Reset Delay Select * | | |When watchdog timeout happened, software has a time named watchdog reset delay period to clear watchdog timer to prevent watchdog reset happened. * | | |Software can select a suitable value of watchdog reset delay period for different watchdog timeout period. * | | |00 = Watchdog reset delay period is 1026 watchdog clock * | | |01 = Watchdog reset delay period is 130 watchdog clock * | | |10 = Watchdog reset delay period is 18 watchdog clock * | | |11 = Watchdog reset delay period is 3 watchdog clock * | | |This register will be reset if watchdog reset happened */ __IO uint32_t CTL; /** * IER * =================================================================================================== * Offset: 0x04 Watchdog Timer Interrupt Enable Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |WDT_IE |Watchdog Timer Interrupt Enable * | | |0 = Watchdog timer interrupt Disabled. * | | |1 = Watchdog timer interrupt Enabled. */ __IO uint32_t IER; /** * ISR * =================================================================================================== * Offset: 0x08 Watchdog Timer Interrupt Status Register * --------------------------------------------------------------------------------------------------- * |Bits |Field |Descriptions * | :----: | :----: | :---- | * |[0] |IS |Watchdog Timer Interrupt Status * | | |If the Watchdog timer interrupt is enabled, then the hardware will set this bit to indicate that the Watchdog timer interrupt has occurred. * | | |If the Watchdog timer interrupt is not enabled, then this bit indicates that a time-out period has elapsed. * | | |0 = Watchdog timer interrupt did not occur. * | | |1 = Watchdog timer interrupt occurs. * | | |Note: This bit is read only, but can be cleared by writing "1" to it. * |[1] |RST_IS |Watchdog Timer Reset Status * | | |When the Watchdog timer initiates a reset, the hardware will set this bit. * | | |This flag can be read by software to determine the source of reset. * | | |Software is responsible to clear it manually by writing "1" to it. * | | |If WTRE is disabled, then the Watchdog timer has no effect on this bit. * | | |0 = Watchdog timer reset did not occur. * | | |1 = Watchdog timer reset occurs. * | | |Note: This bit is read only, but can be cleared by writing "1" to it. * |[2] |WAKE_IS |Watchdog Timer Wake-Up Status * | | |If Watchdog timer causes system to wake up from power-down mode, this bit will be set to high. * | | |It must be cleared by software with a write "1" to this bit. * | | |0 = Watchdog timer does not cause system wake-up. * | | |1 = Wake system up from power-down mode by Watchdog time-out. * | | |Note1: When system in power-down mode and watchdog time-out, hardware will set WDT_WAKE_IS and WDT_IS. * | | |Note2: After one engine clock, this bit can be cleared by writing "1" to it */ __IO uint32_t ISR; } WDT_T;

#define WDT_CTL_WTR_Msk (0x1ul << WDT_CTL_WTR_Pos) /*!< WDT_T::CTL: WTR Mask */ #define WDT_CTL_WTRE_Pos (1) /*!< WDT_T::CTL: WTRE Position */ #define WDT_CTL_WTRE_Msk (0x1ul << WDT_CTL_WTRE_Pos) /*!< WDT_T::CTL: WTRE Mask */ #define WDT_CTL_WTWKE_Pos (2) /*!< WDT_T::CTL: WTWKE Position */ #define WDT_CTL_WTWKE_Msk (0x1ul << WDT_CTL_WTWKE_Pos) /*!< WDT_T::CTL: WTWKE Mask */ #define WDT_CTL_WTE_Pos (3) /*!< WDT_T::CTL: WTE Position */ #define WDT_CTL_WTE_Msk (0x1ul << WDT_CTL_WTE_Pos) /*!< WDT_T::CTL: WTE Mask */ #define WDT_CTL_WTIS_Pos (4) /*!< WDT_T::CTL: WTIS Position */ #define WDT_CTL_WTIS_Msk (0x7ul << WDT_CTL_WTIS_Pos) /*!< WDT_T::CTL: WTIS Mask */ #define WDT_CTL_WTRDSEL_Pos (8) /*!< WDT_T::CTL: WTRDSEL Position */ #define WDT_CTL_WTRDSEL_Msk (0x3ul << WDT_CTL_WTRDSEL_Pos) /*!< WDT_T::CTL: WTRDSEL Mask */ //ÒÔÉϲ¿·ÖÊÇ·ñ¸Ðµ½ÑÛÊ죿¸úWDT_CTLµÄµØÖ·ÊÇÒ»Ò»¶ÔÓ¦µÄ£¬ºóÃæÒ²ÊÇÒ»Ñù£¬Ò²¾ÍÊÇ˵0bitÊÇWTR,1ÊÇWTRE.WTISÊǵÚËÄ룬µ«ÊÇËü±¾ÉíÕ¼Èý룬 //ËùÒÔÏÂÒ»¸ö¼Ä´æÆ÷¾Í»áÒÆÈý룬ÓÖ±£ÁôÁËһ룬ËùÒÔ×óÒƵڰËλ¡£ºóÃ涼ÊÇÒ»ÑùµÄ

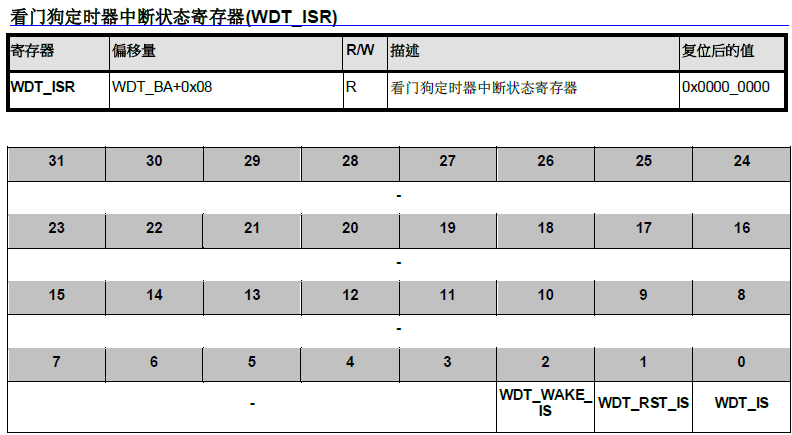

#define WDT_IER_IE_Pos (0) /*!< WDT_T::IER: IE Position */ #define WDT_IER_IE_Msk (0x1ul << WDT_IER_IE_Pos) /*!< WDT_T::IER: IE Mask */ #define WDT_ISR_IS_Pos (0) /*!< WDT_T::ISR: IS Position */ #define WDT_ISR_IS_Msk (0x1ul << WDT_ISR_IS_Pos) /*!< WDT_T::ISR: IS Mask */ #define WDT_ISR_RST_IS_Pos (1) /*!< WDT_T::ISR: RST_IS Position */ #define WDT_ISR_RST_IS_Msk (0x1ul << WDT_ISR_RST_IS_Pos) /*!< WDT_T::ISR: RST_IS Mask */ #define WDT_ISR_WAKE_IS_Pos (2) /*!< WDT_T::ISR: WAKE_IS Position */ # define WDT_ISR_WAKE_IS_Msk (0x1ul << WDT_ISR_WAKE_IS_Pos) /*!< WDT_T::ISR: WAKE_IS Mask */ /**@}*/ /* WDT_CONST */ /**@}*/ /* end of WDT register group */ ÉÏÃæÊÇËüµÄ×îµ×²ã²¿·Ö£¬Äú¿´¶®ÁËô£¿Æäʵ¾ÍÊÇÇ¿ÖƵØַת»»£¬·ÖÅäµØÖ·£¬È»ºó¸ù¾ÝµØÖ·½øÐС£ÅäÖüĴæÆ÷¾ÍÊǸøËûÃÇÒ»¸öÊäÈ룬»òÕßÊä³ö¡£²»¹ýËäÈ»±¾ÖʾÍÊÇÕâÑù£¬µ«²Ù×÷²¢²»¼òµ¥£¬ ÒòΪËûÃǵļĴæÆ÷ºÜ¶à£¬¶øÇÒ´ó¶àÒªÉæ¼°ÍâΧµç·ºÍÍⲿÆ÷¼þ£¬ÈκÎÒ»¸ö»·½Ú³ö´í£¬¶¼²»¿ÉÄܴﵽЧ¹û£¬ËäÈ»Âé·³£¬µ«´ó²¿·Ö¶¼ÊÇÓйæÂɵġ£ ÕâÀï´©²åÒ»Ôò¼Ä´æÆ÷µÄС֪ʶ ÔÚ´æ´¢Æ÷ Block2 Õâ¿éÇøÓò£¬Éè¼ÆµÄÊÇƬÉÏÍâÉ裬ËüÃÇÒÔËĸö×Ö½ÚΪһ¸öµ¥Ôª£¬¹²32bit£¬Ã¿Ò»¸öµ¥Ôª¶ÔÓ¦²»Í¬µÄ¹¦ÄÜ£¬µ±ÎÒÃÇ¿ØÖÆÕâЩµ¥ÔªÊ±¾Í¿ÉÒÔÇý¶¯ÍâÉ蹤×÷¡£ ÎÒÃÇ¿ÉÒÔÕÒµ½Ã¿¸öµ¥ÔªµÄÆðʼµØÖ·£¬È»ºóͨ¹ý CÓïÑÔÖ¸ÕëµÄ²Ù×÷·½Ê½À´·ÃÎÊÕâЩµ¥Ôª£¬Èç¹ûÿ´Î¶¼ÊÇͨ¹ýÕâÖÖµØÖ·µÄ·½Ê½À´·ÃÎÊ£¬²»½ö²»ºÃ¼ÇÒ仹ÈÝÒ׳ö´í£¬ ÕâʱÎÒÃÇ¿ÉÒÔ¸ù¾Ýÿ¸öµ¥Ôª¹¦ÄܵIJ»Í¬£¬ÒÔ¹¦ÄÜΪÃû¸øÕâ¸öÄڴ浥Ԫȡһ¸ö±ðÃû£¬Õâ¸ö±ðÃû¾ÍÊÇÎÒÃǾ­³£ËµµÄ¼Ä´æÆ÷£¬ Õâ¸ö¸øÒѾ­·ÖÅäºÃµØÖ·µÄÓÐÌض¨¹¦ÄܵÄÄڴ浥Ԫȡ±ðÃûµÄ¹ý³Ì¾Í½Ð¼Ä´æÆ÷Ó³Éä¡£ µ±È»¼Ä´æÆ÷ÓÐÈí¼þµÄÒ²ÓÐÓ²¼þµÄ£¬µç··½ÃæÔÚÎÒµÄÐÂÀ˲©¿ÍÉÏÃæ»áÓÐÃèÊö¡£

ÔÙ²åÒ»ÔòС֪ʶ£¬ÊǹØÓÚÇ¿ÖÆÀàÐÍת»»µÄ

¹ØÓÚÒ»¸ö

int *ptr=(int *)(&a+1)

ÎÊÌâµÄ̽ÌÖ

ÍøÂçÉÏ¿´µ½ÕâÑùÒ»µÀÓÐÒâ˼µÄÌâÄ¿£¬ÊǹØÓÚÊý×éÓëÖ¸ÕëµÄÎÊÌ⣬ÃèÊöÈçÏ£º

main()

{

int a[5]={1,2,3,4,5};

int *ptr=(int *)(&a+1);

printf("%d,%d",*(a+1),*(ptr-1));

}

Êä³öΪ£º2,5

Çë½âÊÍÒÔÉÏ´úÂëµÄÊä³ö½á¹û¡£´ð°¸ÈçÏ£º

*(a+1)ÆäʵºÜ¼òµ¥¾ÍÊÇÖ¸a[1],Êä³öΪ2. ÎÊÌâ¹Ø¼ü¾ÍÔÚÓÚµÚ¶þ¸öµã£¬

*(ptr-1)Êä³öΪ¶àÉÙ£¿

½âÊÍÈçÏ£¬&a+1²»ÊÇÊ×µØÖ·+1£¬ÏµÍ³»áÈÏΪ¼ÓÁËÒ»¸öÕû¸öaÊý×飬ƫÒÆÁËÕû¸öÊý×éaµÄ´óС£¨Ò²¾ÍÊÇ5¸öintµÄ´óС£©¡£ËùÒÔ

int *ptr=(int *)(&a+1);Æäʵptrʵ¼ÊÊÇ&(a[5]),Ò²¾ÍÊÇa+5. Ô­ÒòΪºÎÄØ£¿

&aÊÇÊý×éÖ¸Õ룬ÆäÀàÐÍΪint(*)[5]; ¶øÖ¸Õë¼Ó1Òª¸ù¾ÝÖ¸ÕëÀàÐͼÓÉÏÒ»¶¨µÄÖµ£¬²»Í¬ÀàÐ͵ÄÖ¸Õë+1Ö®ºóÔö¼ÓµÄ´óС²»Í¬£¬

aÊdz¤¶ÈΪ5µÄintÊý×éÖ¸Õ룬ËùÒÔÒª¼Ó5*sizeof(int)£¬ËùÒÔptrʵ¼ÊÊÇa[5],µ«ÊÇptrÓ루&a+1£©ÀàÐÍÊDz»Ò»ÑùµÄ£¬Õâµã·Ç³£ÖØÒª£¬ËùÒÔptr-1Ö»»á¼õÈ¥sizeof(int*),

a£¬&aµÄµØÖ·ÊÇÒ»ÑùµÄ£¬µ«Òâ˼¾Í²»Ò»ÑùÁË£¬aÊÇÊý×éÊ×µØÖ·£¬Ò²¾ÍÊÇa[0]µÄµØÖ·£¬&aÊǶÔÏó£¨Êý×飩Ê×µØÖ·£¬a+1ÊÇÊý×éÏÂÒ»ÔªËصĵØÖ·£¬¼´a[1],&a+1ÊÇÏÂÒ»¸ö¶ÔÏóµÄµØÖ·£¬¼´a[5]¡£

½ÓÏÂÀ´£¬ÎÒÃÇÔÙÀ´¿´¿´£¬ÉÏÃæËù°üº¬µÄ¼Ä´æÆ÷£¬ÕâÊÇÒ»¸öºÜ´óµÄÁ¿£¬ÇëÄÍÐÄ¿´Í꣬ÏàÐÅ»áÓÐÊÕ»ñµÄ¡£

¼ÈÈ»ÎÒÃÇÊìϤÁ˵ײ㡣ÄÇôÎÒÃǵ±È»²»»áÖ¹²½ÓÚ´Ë£¬Ó¦ÓòãµÄ¶«Î÷£¬µ±È»Ò²Òª×ö¡£

ÔÚ¹¦ÄÜÃèÊöÄÇÒ»Õ½Úʱ£¬ÎÒÃÇÆäʵÒѾ­Ã÷°×ÁË£¬ËüµÄ¾ßÌå²Ù×÷ºÍ²½Ö裬µ«ÊÇΪÁËÎÒÃǸü¼ÓÇå³þÃ÷°×ºÍ·½±ãµ÷Óã¬ÎÒÃǾö¶¨²ÉÓÿ⺯ÊýµÄÐÎʽ£¬À´½²ÊöÕâ¸öÓ¦Óã¬Ê×ÏÈÎÒÏë˵µÄÊÇÕâÖ»ÊÇÒ»¸öСµÄ¹Ù·½Àý³Ì£¬Èç¹ûºóÐø»áÓдóÐ͵ÄÏîÄ¿£¬²»Éæ¼°±£ÃܵĻ°£¬ÎÒ»á°ÑËü¹²Ïí³öÀ´

¼ÈÈ»ÎÒÃÇÒªÓÿ´ÃŹ·£¬¼ÈȻҪʹÓÃËü£¬ÎÒÃǵ±È»Òª´ò¿ªËü£¬¼´½øÐгõʼ»¯¡£

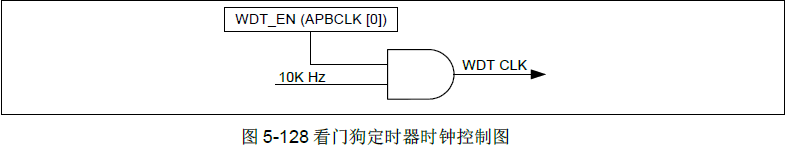

Ê×ÏÈÑ¡ÔñʱÖÓ

void SYS_Init(void) { /*---------------------------------------------------------------------------------------------------------*/ /* Init System Clock */ /*---------------------------------------------------------------------------------------------------------*/ /* Unlock protected registers */ SYS_UnlockReg(); /* Enable External XTAL (4~24 MHz) */ CLK_EnableXtalRC(CLK_PWRCTL_HXT_EN_Msk); /* Enable LIRC */ CLK_EnableXtalRC(CLK_PWRCTL_LIRC_EN_Msk); /* Waiting for 12MHz clock ready */ CLK_WaitClockReady( CLK_CLKSTATUS_HXT_STB_Msk); /* Waiting for LIRC clock ready */ CLK_WaitClockReady( CLK_CLKSTATUS_LIRC_STB_Msk); /* Switch HCLK clock source to HXT */ CLK_SetHCLK(CLK_CLKSEL0_HCLK_S_HXT,CLK_HCLK_CLK_DIVIDER(1)); /* Enable IP clock */ CLK_EnableModuleClock(UART0_MODULE); CLK_EnableModuleClock(WDT_MODULE);

/*

#define WDT_MODULE ((1UL<<31)|(3<<29)|(MODULE_NoMsk<<25)|( 0<<20)|(0<<18)|(MODULE_NoMsk<<10)|( 0<<5)|CLK_APBCLK_WDT_EN_Pos )

/*!< Watchdog Timer Module */

#define MODULE_NoMsk 0x0 /*!< Not mask on MODULE index */

#define WDT_MODULE ((1UL<<31)|(3<<29)|(MODULE_NoMsk<<25)|( 0<<20)|(0<<18)|(MODULE_NoMsk<<10)|( 0<<5)|CLK_APBCLK_WDT_EN_Pos )

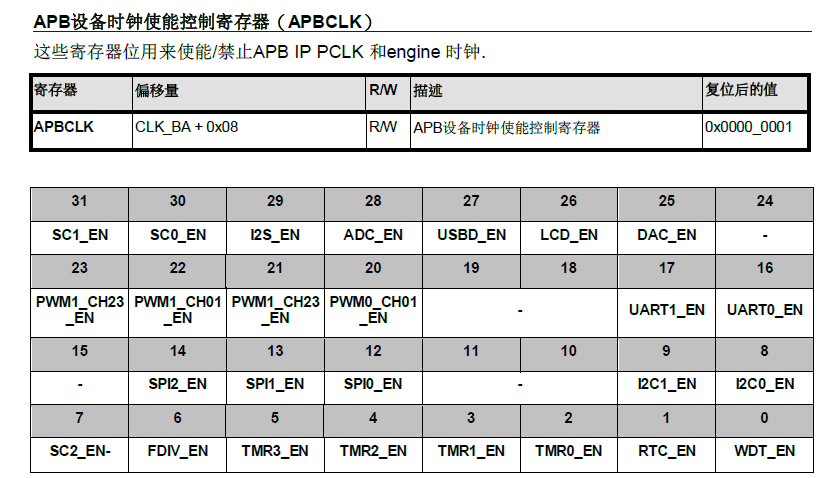

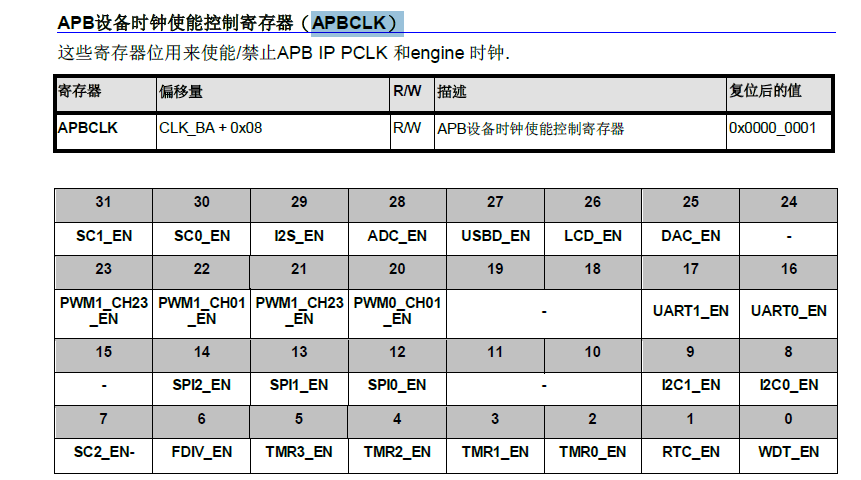

#define CLK_APBCLK_WDT_EN_Pos (0) /*!< CLK_T::APBCLK: WDT_EN Position */

#define CLK_APBCLK_WDT_EN_Msk (0x1ul << CLK_APBCLK_WDT_EN_Pos) /*!< CLK_T::APBCLK: WDT_EN Mask

*/

/* Select IP clock source */ CLK_SetModuleClock(UART0_MODULE, CLK_CLKSEL1_UART_S_HXT, CLK_UART_CLK_DIVIDER(1)); CLK_SetModuleClock(WDT_MODULE, 0, 0); /* Update System Core Clock */ /* User can use SystemCoreClockUpdate() to calculate SystemCoreClock. */ SystemCoreClockUpdate(); /*---------------------------------------------------------------------------------------------------------*/ /* Init I/O Multi-function */ /*---------------------------------------------------------------------------------------------------------*/ /* Set GPB multi-function pins for UART0 RXD and TXD */ SYS->PB_L_MFP &= ~(SYS_PB_L_MFP_PB0_MFP_Msk | SYS_PB_L_MFP_PB1_MFP_Msk); SYS->PB_L_MFP |= (SYS_PB_L_MFP_PB1_MFP_UART0_TX | SYS_PB_L_MFP_PB0_MFP_UART0_RX); /* Lock protected registers */ SYS_LockReg(); }

void CLK_SetModuleClock(uint32_t u32ModuleIdx, uint32_t u32ClkSrc, uint32_t u32ClkDiv)
{
uint32_t u32tmp=0,u32sel=0,u32div=0;

if(MODULE_CLKDIV_Msk(u32ModuleIdx)!=MODULE_NoMsk) {u32div =(uint32_t)&CLK->CLKDIV0+((MODULE_CLKDIV(u32ModuleIdx))*4);u32tmp = *(volatile uint32_t *)(u32div);u32tmp = ( u32tmp & ~(MODULE_CLKDIV_Msk(u32ModuleIdx)<

#define MODULE_CLKDIV_Msk(x) ((x >>10) & 0xff) /*!< Calculate CLKDIV mask offset on MODULE index */

#define MODULE_CLKDIV_Msk(x) ((x >>10) & 0xff) /*!< Calculate CLKDIV mask offset on MODULE index */

#define MODULE_CLKDIV_Pos(x) ((x >>5 ) & 0x1f) /*!< Calculate CLKDIV position offset on MODULE index */

#define MODULE_CLKDIV_Pos(x) ((x >>5 ) & 0x1f) /*!< Calculate CLKDIV position offset on MODULE index */

( u32tmp & ~(MODULE_CLKDIV_Msk(u32ModuleIdx)<

~((1110 0000 0000 0000 0000 0000 0000>>10) <<(1110 0000 0000 0000 0000 0000 >>5))|u32Div mingbaile zhongyv

// 1110 0000 0000 0000 0000 0000 0000 0000 ÓÒÒÆ5λΪ0000 1110 0000 0000 0000 0000 0000 0000 0000

// 1110 0000 0000 0000 0000 0000 0000 0000 ÓÒÒÆ10λΪ 0000 0000 0111 0000 0000 0000 0000 0000 0000

//Ëùνģ¿é¾ÍÊǸøʱÖÓµÄWDT_ENλһ¸öʹÄÜ

if(MODULE_CLKSEL_Msk(u32ModuleIdx)!=MODULE_NoMsk) {u32sel = (uint32_t)&CLK->CLKSEL0+((MODULE_CLKSEL(u32ModuleIdx))*4);u32tmp = *(volatile uint32_t *)(u32sel);u32tmp = ( u32tmp & ~(MODULE_CLKSEL_Msk(u32ModuleIdx)<

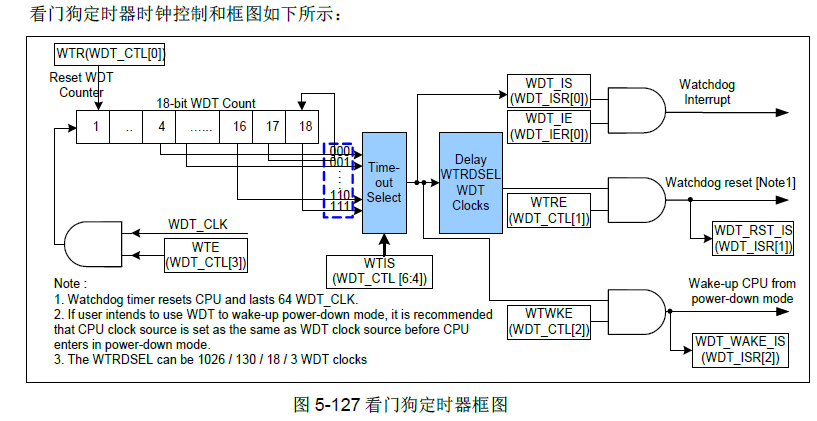

¼´ÎÒÃǸտªÊ¼Ëù½²µÄÉèÖà WTE (WDT_CTL[3]) ʹÄÜ¿´ÃŹ·¶¨Ê±Æ÷ºÍWDT ¼ÆÊýÆ÷¿ªÊ¼¼ÆÊý¡££¨ÔÚ¹¦ÄÜÃèÊöÄÇÒ»²¿·ÖµÚÒ»¾ä£©

/*** @brief This function make WDT module start counting with different time-out interval* @param[in] u32TimeoutInterval Time-out interval period of WDT module. Valid values are:* - \ref WDT_TIMEOUT_2POW4* - \ref WDT_TIMEOUT_2POW6* - \ref WDT_TIMEOUT_2POW8* - \ref WDT_TIMEOUT_2POW10* - \ref WDT_TIMEOUT_2POW12* - \ref WDT_TIMEOUT_2POW14* - \ref WDT_TIMEOUT_2POW16* - \ref WDT_TIMEOUT_2POW18* @param[in] u32ResetDelay Reset delay period while WDT time-out happened. Valid values are:* - \ref WDT_RESET_DELAY_3CLK* - \ref WDT_RESET_DELAY_18CLK* - \ref WDT_RESET_DELAY_130CLK* - \ref WDT_RESET_DELAY_1026CLK* @param[in] u32EnableReset Enable WDT reset system function. Valid values are TRUE and FALSE* @param[in] u32EnableWakeup Enable WDT wake-up system function. Valid values are TRUE and FALSE* @return None*/

void WDT_Open(uint32_t u32TimeoutInterval, uint32_t u32ResetDelay, uint32_t u32EnableReset, uint32_t u32EnableWakeup) { WDT->CTL = u32TimeoutInterval | u32ResetDelay | WDT_CTL_WTE_Msk | (u32EnableReset << WDT_CTL_WTRE_Pos) | (u32EnableWakeup << WDT_CTL_WTWKE_Pos); return; }

Õâ¸öÒâ˼¾ÍÊÇÑ¡ÔñËüµÄ³¬Ê±Ê±¼ä£¬ºÍ¸´Î»ÑÓ³Ùʱ¼äºÍÆô¶¯ÏµÍ³¹¦ÄÜ£¬ºÍ¸´Î»ÏµÍ³¹¦ÄÜ

u32TimeoutInterval WDTÄ£¿éµÄ³¬Ê±¼ä¸ôʱ¼ä¡£ÓÐЧֵÊÇ£º
* - \ ref WDT_TIMEOUT_2POW4
* - \ ref WDT_TIMEOUT_2POW6
* - \ ref WDT_TIMEOUT_2POW8
* - \ ref WDT_TIMEOUT_2POW10
* - \ ref WDT_TIMEOUT_2POW12
* - \ ref WDT_TIMEOUT_2POW14
* - \ ref WDT_TIMEOUT_2POW16
* - \ ref WDT_TIMEOUT_2POW18

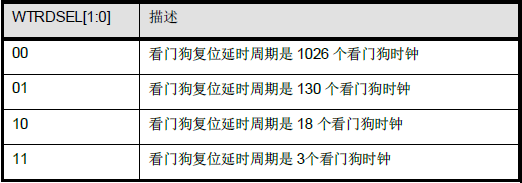

* @param [in] u32ResetDelay·¢ÉúWDT³¬Ê±µÄ¸´Î»ÑÓ³Ùʱ¼ä¡£ÓÐЧֵÊÇ£º
* - \ ref WDT_RESET_DELAY_3CLK
* - \ ref WDT_RESET_DELAY_18CLK
* - \ ref WDT_RESET_DELAY_130CLK
* - \ ref WDT_RESET_DELAY_1026CLK
* @param [in] u32EnableResetÆôÓÃWDT¸´Î»ÏµÍ³¹¦ÄÜ¡£ÓÐЧֵΪTRUEºÍFALSE
* @param [in] u32EnableWakeupÆôÓÃWDT»½ÐÑϵͳ¹¦ÄÜ¡£ÓÐЧֵΪTRUEºÍFALSE
* @·µ»ØÎÞ
* /

¶ÔÓ¦µÄ¿âº¯ÊýÓë±í¸ñ·Ö±ðÊÇ£º

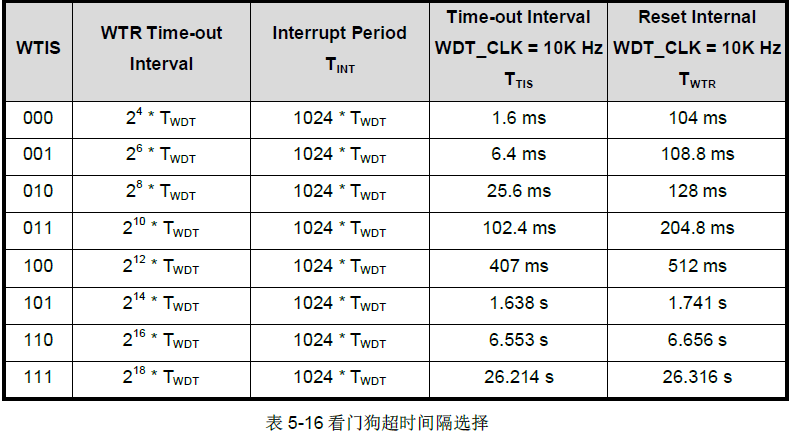

#define WDT_TIMEOUT_2POW4 (0UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^4 * WDT clocks */ #define WDT_TIMEOUT_2POW6 (1UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^6 * WDT clocks */ #define WDT_TIMEOUT_2POW8 (2UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^8 * WDT clocks */ #define WDT_TIMEOUT_2POW10 (3UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^10 * WDT clocks */ #define WDT_TIMEOUT_2POW12 (4UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^12 * WDT clocks */ #define WDT_TIMEOUT_2POW14 (5UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^14 * WDT clocks */ #define WDT_TIMEOUT_2POW16 (6UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^16 * WDT clocks */ #define WDT_TIMEOUT_2POW18 (7UL << WDT_CTL_WTIS_Pos) /*!< WDT setting for timeout interval = 2^18 * WDT clocks */ #define WDT_RESET_DELAY_3CLK (3UL << WDT_CTL_WTRDSEL_Pos) /*!< WDT setting reset delay to 3 WDT clocks */ #define WDT_RESET_DELAY_18CLK (2UL << WDT_CTL_WTRDSEL_Pos) /*!< WDT setting reset delay to 18 WDT clocks */ #define WDT_RESET_DELAY_130CLK (1UL << WDT_CTL_WTRDSEL_Pos) /*!< WDT setting reset delay to 130 WDT clocks */ #define WDT_RESET_DELAY_1026CLK (0UL << WDT_CTL_WTRDSEL_Pos) /*!< WDT setting reset delay to 1026 WDT clocks */

ÎÒÃÇ¿´Ò»¿´µÚ¶þ¾ä£º

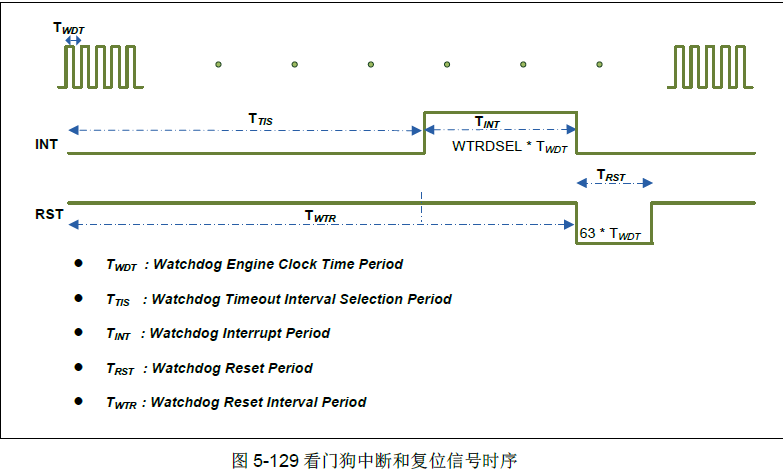

µ±¼ÆÊýÆ÷´ïµ½Ñ¡ÔñµÄ³¬Ê±¼ä¸ô£¬¿´ÃŹ·¶¨Ê±Æ÷ÖжϱêÖ¾WDT_IS½«±»Á¢¼´±»ÖÃ룬²¢ÇëÇóWDT ÖÐ¶Ï (Èç¹û¿´ÃŹ·¶¨Ê±Æ÷ÖжÏʹÄÜλWDT_IE ÖÃλ)£¬Í¬Ê±½ô½Ó×ų¬Ê±Ê¼þ»áÓÐÒ»¸öÖ¸¶¨µÄÑÓʱ¿É͸¹ý WTRDSEL ÔOÖã¬Óû§±ØÐëÔÚ¸ÃÖ¸¶¨ÑÓʱ¹ýÆÚÇ°ÉèÖÃWTR (WDT_CTL[0]) (¿´ÃŹ·¶¨Ê±Æ÷¸´Î») Ϊ¸ßÀ´¸´Î»18 λ WDT ¼ÆÊýÆ÷£¬ÒÔ·ÀֹоƬ¸´Î»¡£

ÇëÇóÖжϾ͵ÃÏÈÓÐÖжϣ¬Ê¹ÄÜÖжϣº

/**

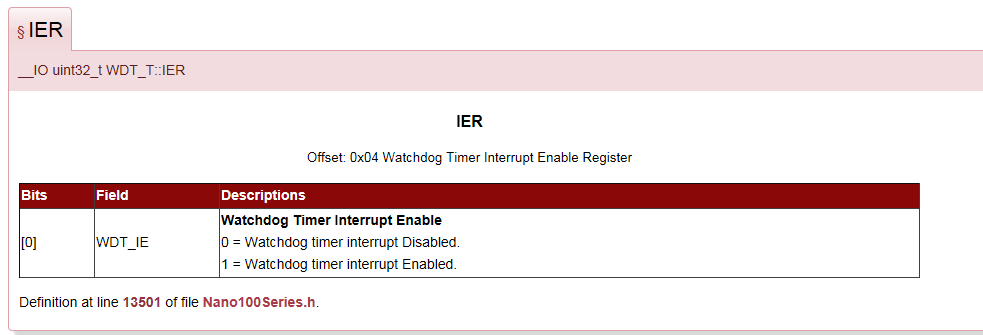

* @brief This function enables the WDT time-out interrupt
* @param None
* @return None
*/

__STATIC_INLINE void WDT_EnableInt(void) { WDT->IER = WDT_IER_IE_Msk; return; }

/** \brief Enable External Interrupt \details Enables a device-specific interrupt in the NVIC interrupt controller. \param [in] IRQn External interrupt number. Value cannot be negative. */ __STATIC_INLINE void NVIC_EnableIRQ(IRQn_Type IRQn) { NVIC->ISER[0U] = (uint32_t)(1UL << (((uint32_t)(int32_t)IRQn) & 0x1FUL)); }

ÕâÁ½¸öÖжϣ¬Ò»¸öÊÇWDTʹÄÜÖжϣ¬Ò»¸öÊÇÍⲿÖжϡ£ÎÒÃÇ»¹ÒªÀûÓö¨Ê±Æ÷½øÐÐι¹·²Ù×÷£¬Ëùνι¹·£º

void WDT_IRQHandler(void)
{

// Clear WDT interrupt flag

WDT_CLEAR_TIMEOUT_INT_FLAG();

// Check WDT wake up flag
if(WDT_GET_TIMEOUT_WAKEUP_FLAG()) {
printf("Wake up by WDT\n");
// Clear WDT wake up flag
WDT_CLEAR_TIMEOUT_WAKEUP_FLAG();
}

}

ÕâÀïÃæÉæ¼°µÄ¿âº¯ÊýÓÐÏÂÃæÕâЩ£º¿´ÍêÄúÊÇ·ñÃ÷°×ÁË£¿

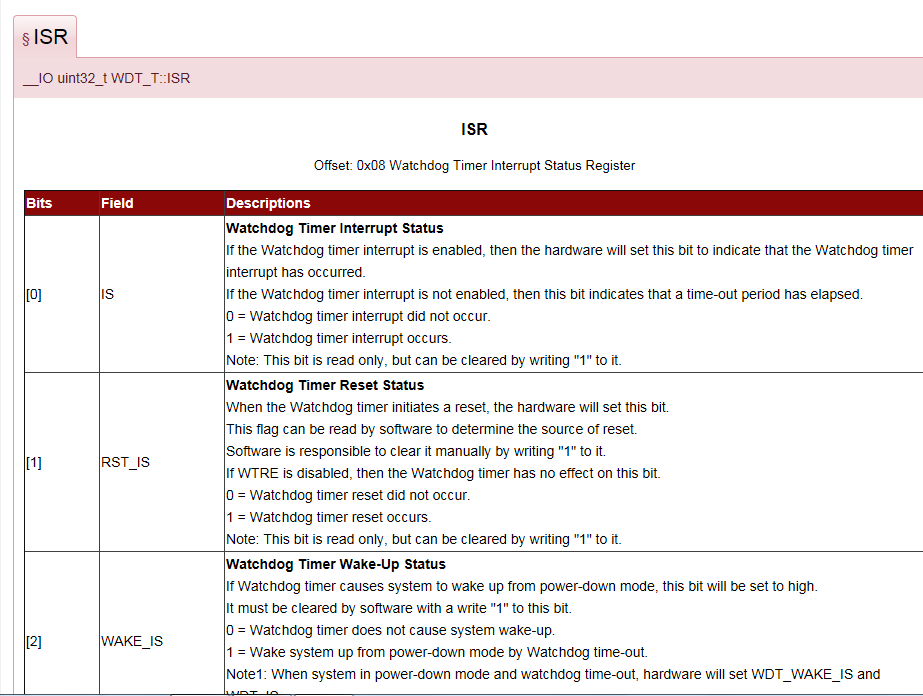

#define WDT_ISR_WAKE_IS_Msk (0x1ul << WDT_ISR_WAKE_IS_Pos) /*!< WDT_T::ISR: WAKE_IS Mask */

#define WDT_GET_TIMEOUT_WAKEUP_FLAG() (WDT->ISR & WDT_ISR_WAKE_IS_Msk ? 1 : 0)

#define WDT_CLEAR_TIMEOUT_WAKEUP_FLAG() (WDT->ISR = WDT_ISR_WAKE_IS_Msk)

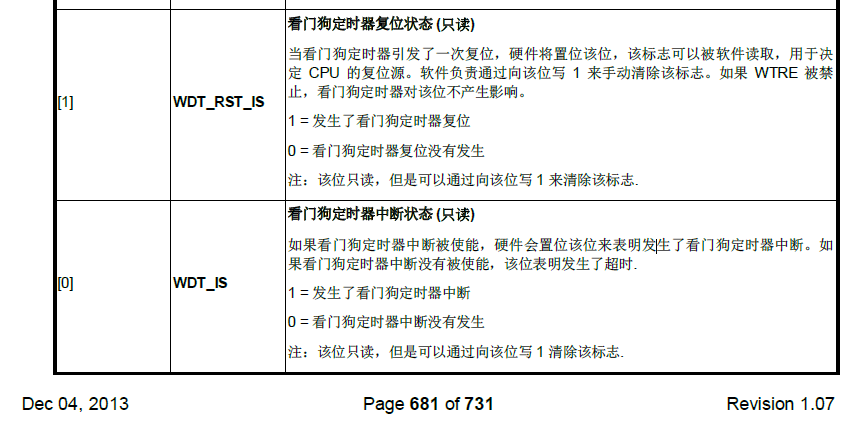

ÄÇô£¿¹¦ÄÜÓëÃèÊö×îºóÕâÒ»¾ä£¬WDT_RST_IS ²»»á±»¿´ÃŹ·¸´Î»ÇåÁã¡£Óû§¿ÉÓÃÈí¼þÂÖѯWDT_RST_IS À´Ê¶±ð¸´Î»Ô´ÊÇ·ñWDT¡£

È»ºó£¬ÉϽñÌìµÄÖ÷²Ë£¬Ö÷³ÌÐòÉϳ¡£º

/****************************************************************************** * @file main.c * @version V1.00 * $Revision: 3 $ * $Date: 14/09/11 7:39p $ * @brief Use WDT to wake up system from Power-down mode periodically. * * @note * Copyright (C) 2013-2014 Nuvoton Technology Corp. All rights reserved. *****************************************************************************/ #include  #include "Nano100Series.h" void WDT_IRQHandler(void) { // Clear WDT interrupt flag WDT_CLEAR_TIMEOUT_INT_FLAG(); // Check WDT wake up flag if(WDT_GET_TIMEOUT_WAKEUP_FLAG()) { printf("Wake up by WDT\n"); // Clear WDT wake up flag WDT_CLEAR_TIMEOUT_WAKEUP_FLAG(); } } void SYS_Init(void) { /*---------------------------------------------------------------------------------------------------------*/ /* Init System Clock */ /*---------------------------------------------------------------------------------------------------------*/ /* Unlock protected registers */ SYS_UnlockReg(); /* Enable External XTAL (4~24 MHz) */ CLK_EnableXtalRC(CLK_PWRCTL_HXT_EN_Msk); /* Enable LIRC */ CLK_EnableXtalRC(CLK_PWRCTL_LIRC_EN_Msk); /* Waiting for 12MHz clock ready */ CLK_WaitClockReady( CLK_CLKSTATUS_HXT_STB_Msk); /* Waiting for LIRC clock ready */ CLK_WaitClockReady( CLK_CLKSTATUS_LIRC_STB_Msk); /* Switch HCLK clock source to HXT */ CLK_SetHCLK(CLK_CLKSEL0_HCLK_S_HXT,CLK_HCLK_CLK_DIVIDER(1)); /* Enable IP clock */ CLK_EnableModuleClock(UART0_MODULE); CLK_EnableModuleClock(WDT_MODULE); /* Select IP clock source */ CLK_SetModuleClock(UART0_MODULE, CLK_CLKSEL1_UART_S_HXT, CLK_UART_CLK_DIVIDER(1)); CLK_SetModuleClock(WDT_MODULE, 0, 0); /* Update System Core Clock */ /* User can use SystemCoreClockUpdate() to calculate SystemCoreClock. */ SystemCoreClockUpdate(); /*---------------------------------------------------------------------------------------------------------*/ /* Init I/O Multi-function */ /*---------------------------------------------------------------------------------------------------------*/ /* Set GPB multi-function pins for UART0 RXD and TXD */ SYS->PB_L_MFP &= ~(SYS_PB_L_MFP_PB0_MFP_Msk | SYS_PB_L_MFP_PB1_MFP_Msk); SYS->PB_L_MFP |= (SYS_PB_L_MFP_PB1_MFP_UART0_TX | SYS_PB_L_MFP_PB0_MFP_UART0_RX); /* Lock protected registers */ SYS_LockReg(); } int32_t main (void) { /* Init System, IP clock and multi-function I/O In the end of SYS_Init() will issue SYS_LockReg() to lock protected register. If user want to write protected register, please issue SYS_UnlockReg() to unlock protected register if necessary */ SYS_Init(); /* Init UART to 115200-8n1 for print message */ UART_Open(UART0, 115200); printf("\nThis sample code demonstrate using WDT to wake system up from power down mode\n"); // WDT register is locked, so it is necessary to unlock protect register before configure WDT SYS_UnlockReg(); // WDT timeout every 2^14 WDT clock, disable system reset, enable wake up system WDT_Open(WDT_TIMEOUT_2POW14, 0, FALSE, TRUE); // Enable WDT timeout interrupt WDT_EnableInt(); NVIC_EnableIRQ(WDT_IRQn); while(1) { // Wait 'til UART FIFO empty to get a cleaner console out while(!UART_IS_TX_EMPTY(UART0)); CLK_PowerDown(); } } /*** (C) COPYRIGHT 2014 Nuvoton Technology Corp. ***/

ÕâÆäÖл¹ÓÐһЩÎÒûÓн²µÄÌ«Çå³þ£¬·ÅÐÄ£¬ÎÒ»áÈø÷λ¶¼Çå³þÃ÷°×µÄ£¬ÎÒ»áÂýÂýÈ¥ÐÞÕý£¬»¶Ó­ÄúµÄÖ¸µã
